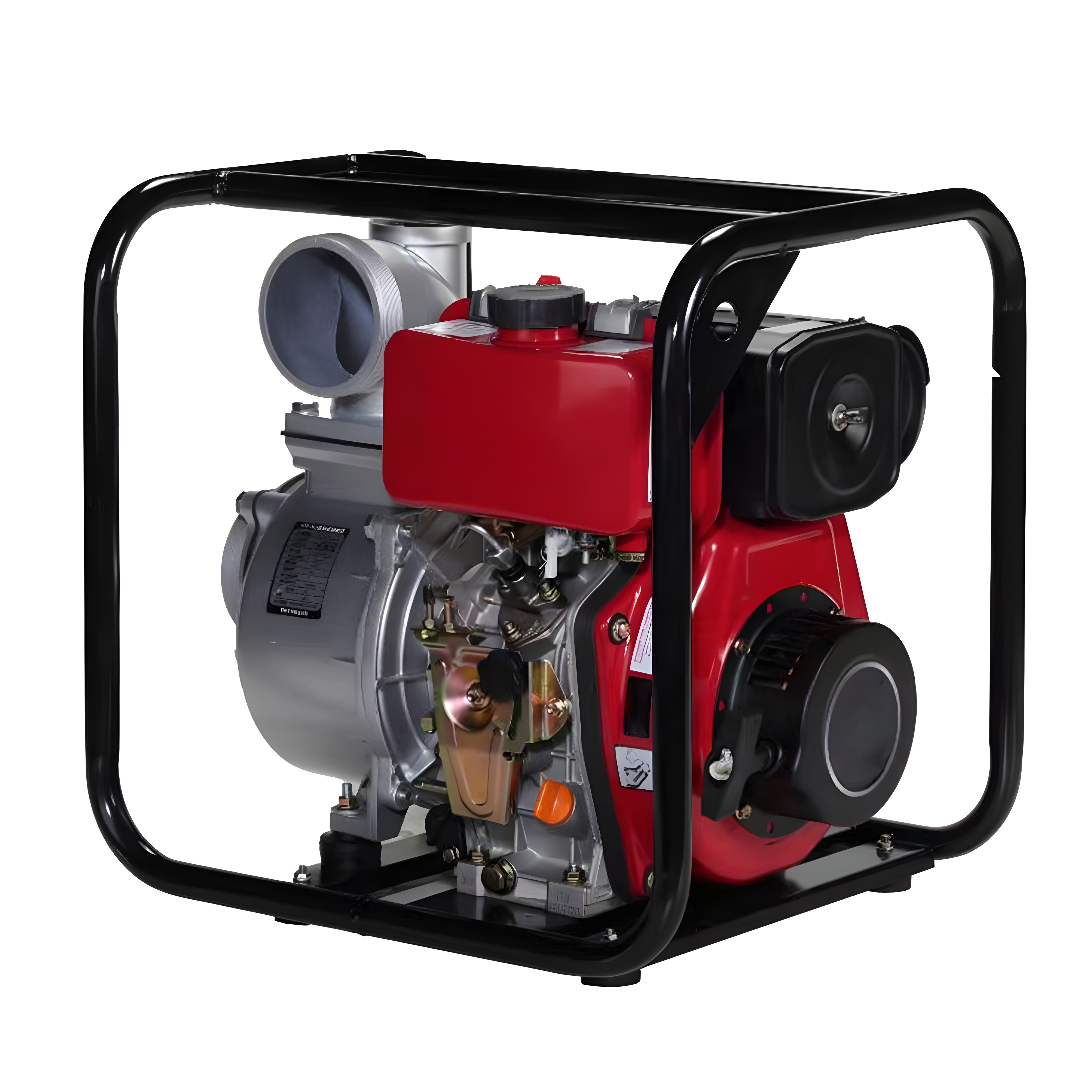

PSBLD186C is a diesel-powered clear water self-priming pump designed for water transfer, agricultural irrigation, field drainage, and general clean water pumping applications, providing stable and efficient pumping performance. It is powered by a 186F diesel engine, featuring a single-cylinder, vertical, 4-stroke, air-cooled design, ensuring reliable output and dependable operation in daily working environments.

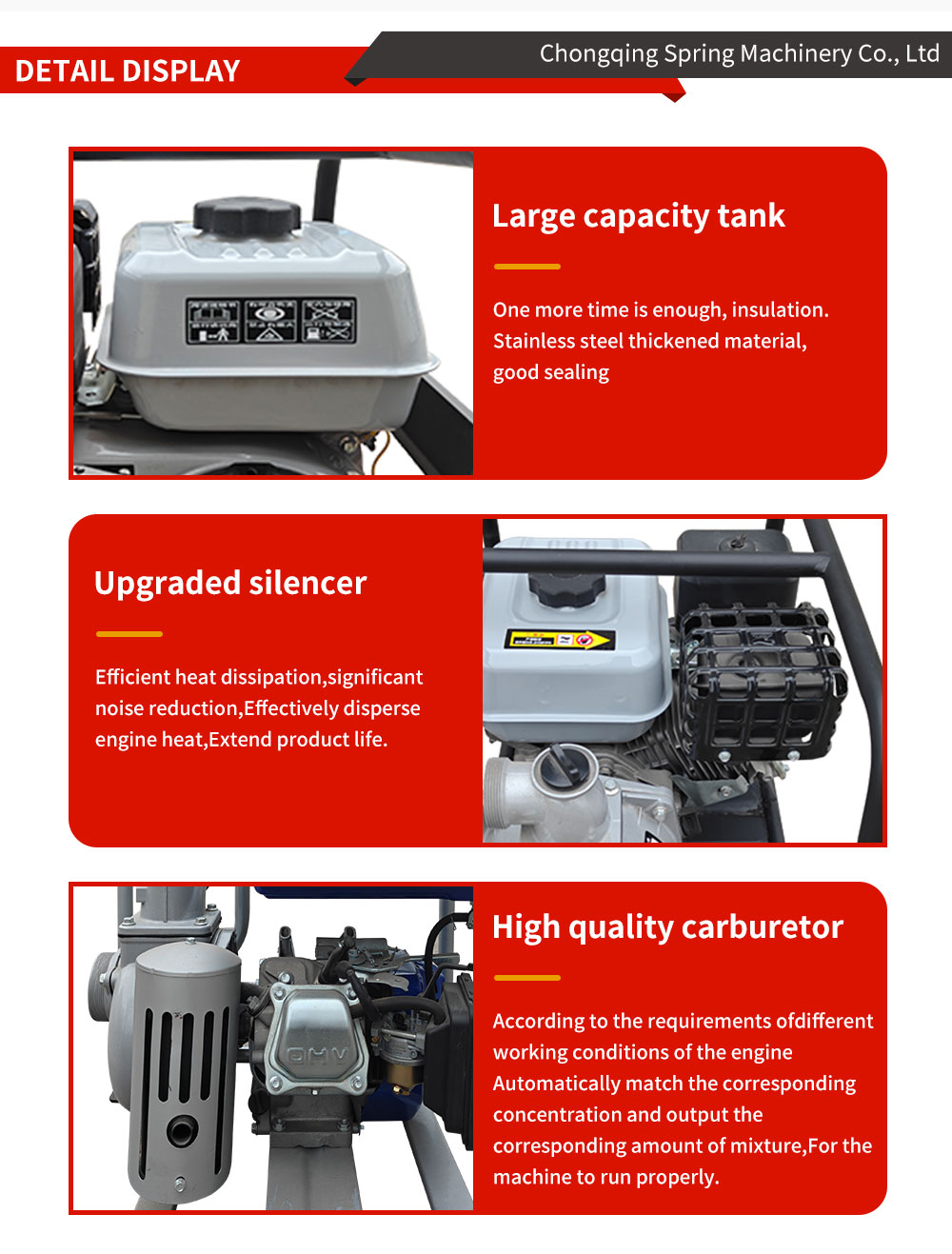

With a displacement of 406 ml and a bore and stroke of 86 × 70 mm, the engine operates at 3600 rpm for efficient and consistent performance. The pump is equipped with a recoil manual starting system, with optional electric start available for easier operation. Its 3.6 L fuel tank and 1.5 L engine oil capacity support extended working periods.

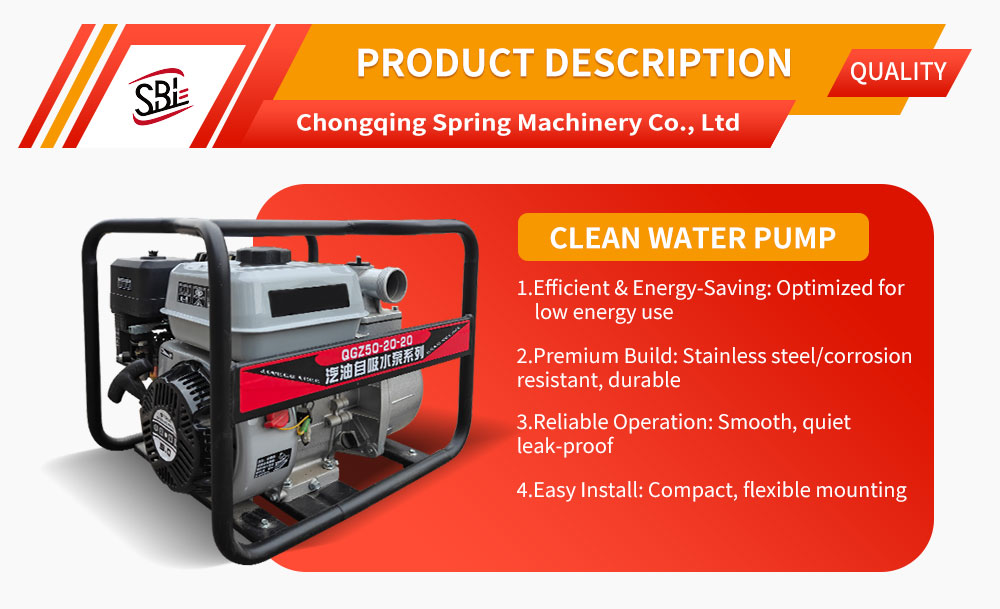

As a clear water self-priming pump, this model is designed to quickly establish suction and continuously deliver water during operation, making it suitable for irrigation, drainage, water supply, and other clean water transfer tasks requiring stable flow and reliable suction performance.
PSBLD186C supports a 4-inch outlet configuration, using 100 mm inlet and outlet diameters. It delivers a flow rate of 80 m³/h, a maximum head of 25 m, and a suction lift of 7 m, providing strong water delivery capacity for applications that require large flow volume and practical pumping efficiency.
The overall dimensions are 590 × 470 × 595 mm, with a gross weight of 72 kg. With its durable structure, powerful diesel engine, and reliable self-priming performance, PSBLD186C is a dependable solution for agricultural and general-purpose clear water pumping needs.
