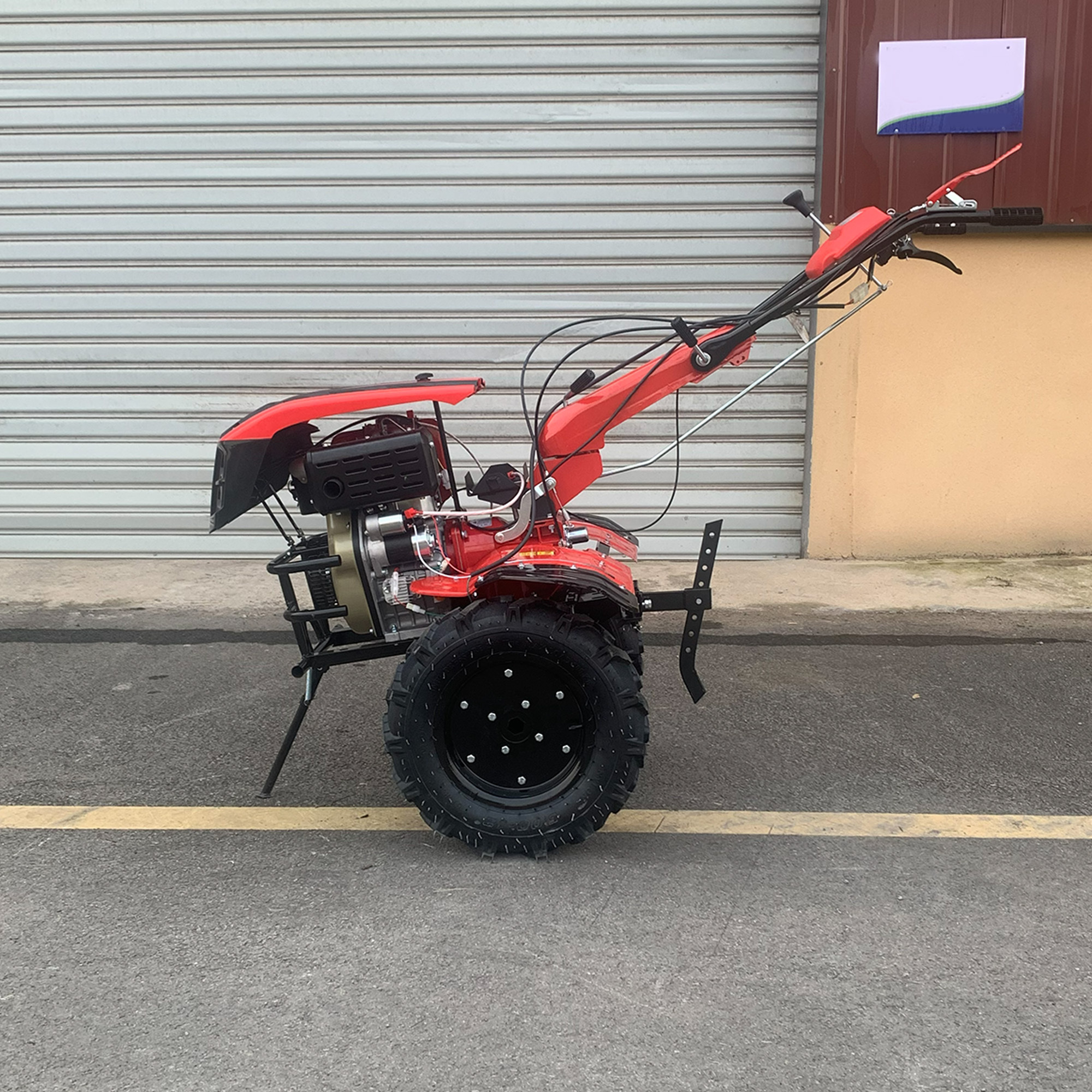

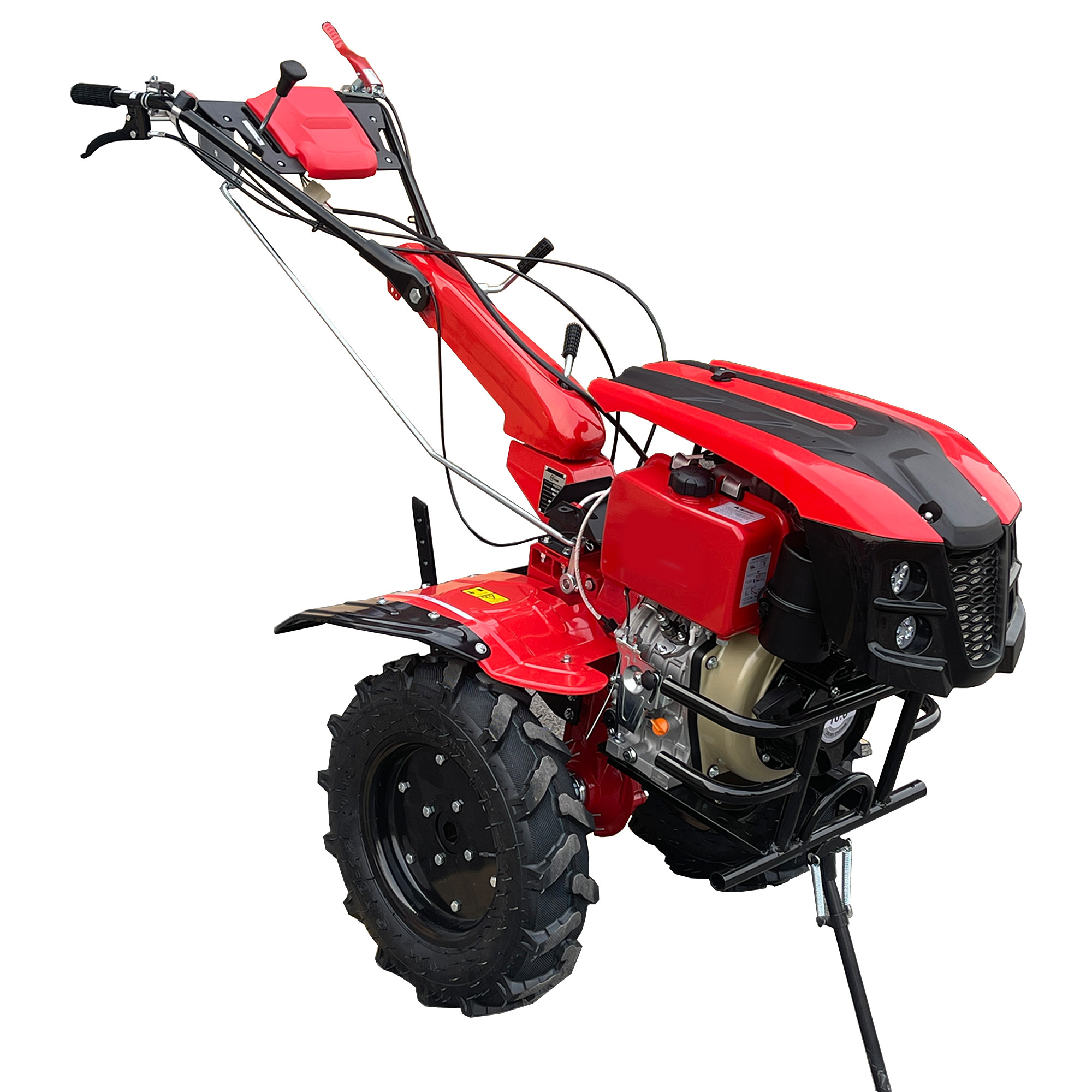

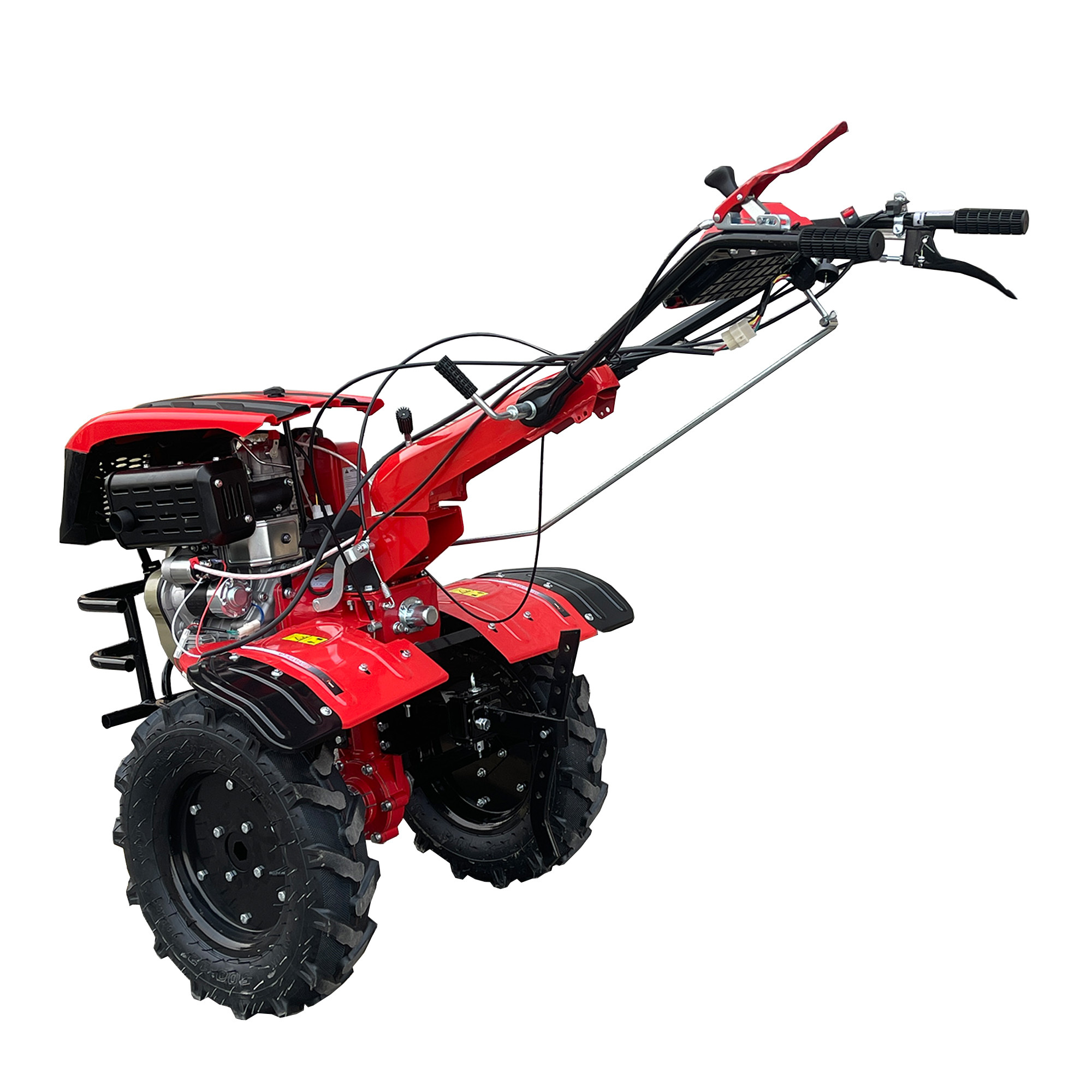

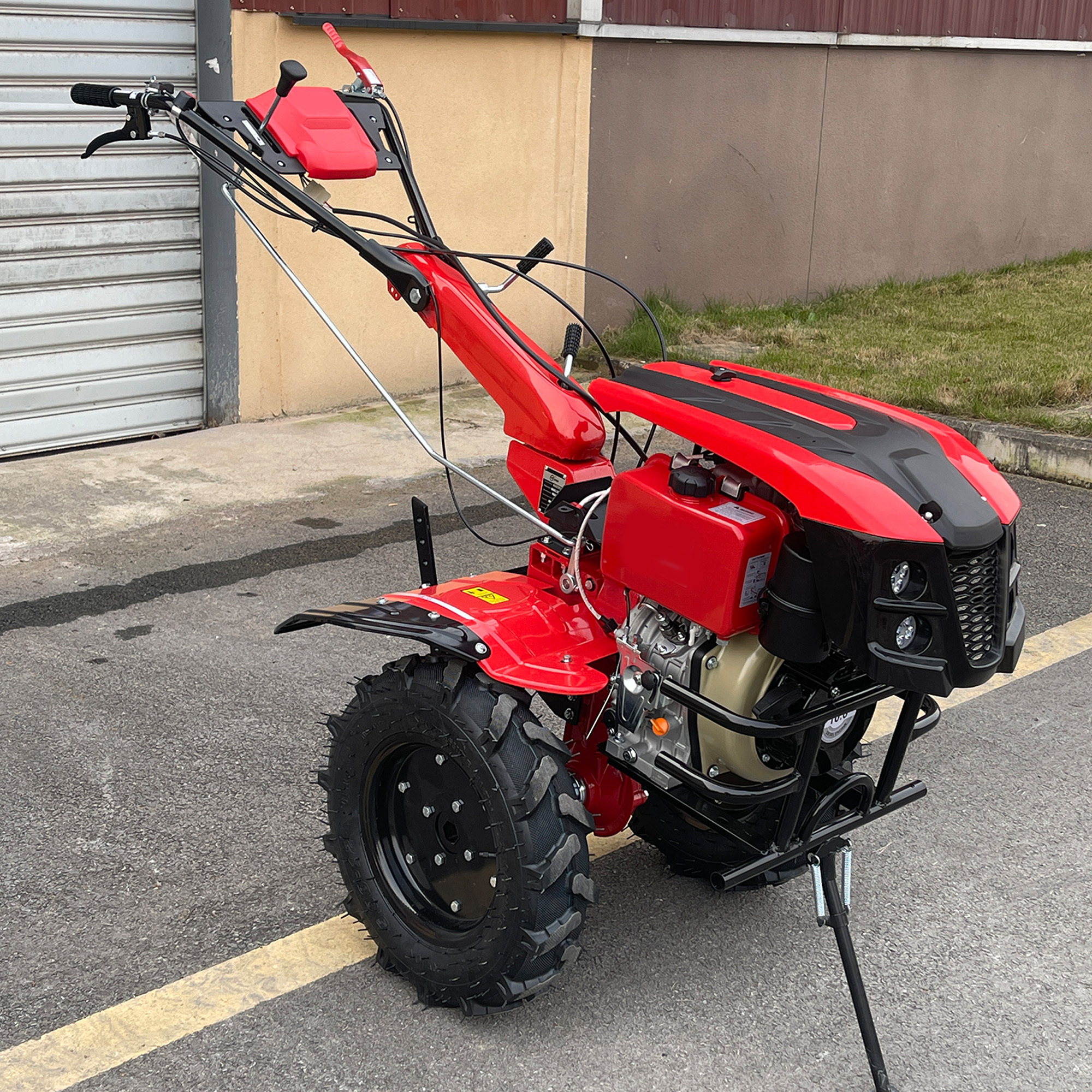

UPGRADED 10HP Diesel Tiller Engine Cover With Light BIG Tire & Bumper Engine 186F 32mm Shaft

No.TSBL1350Dp

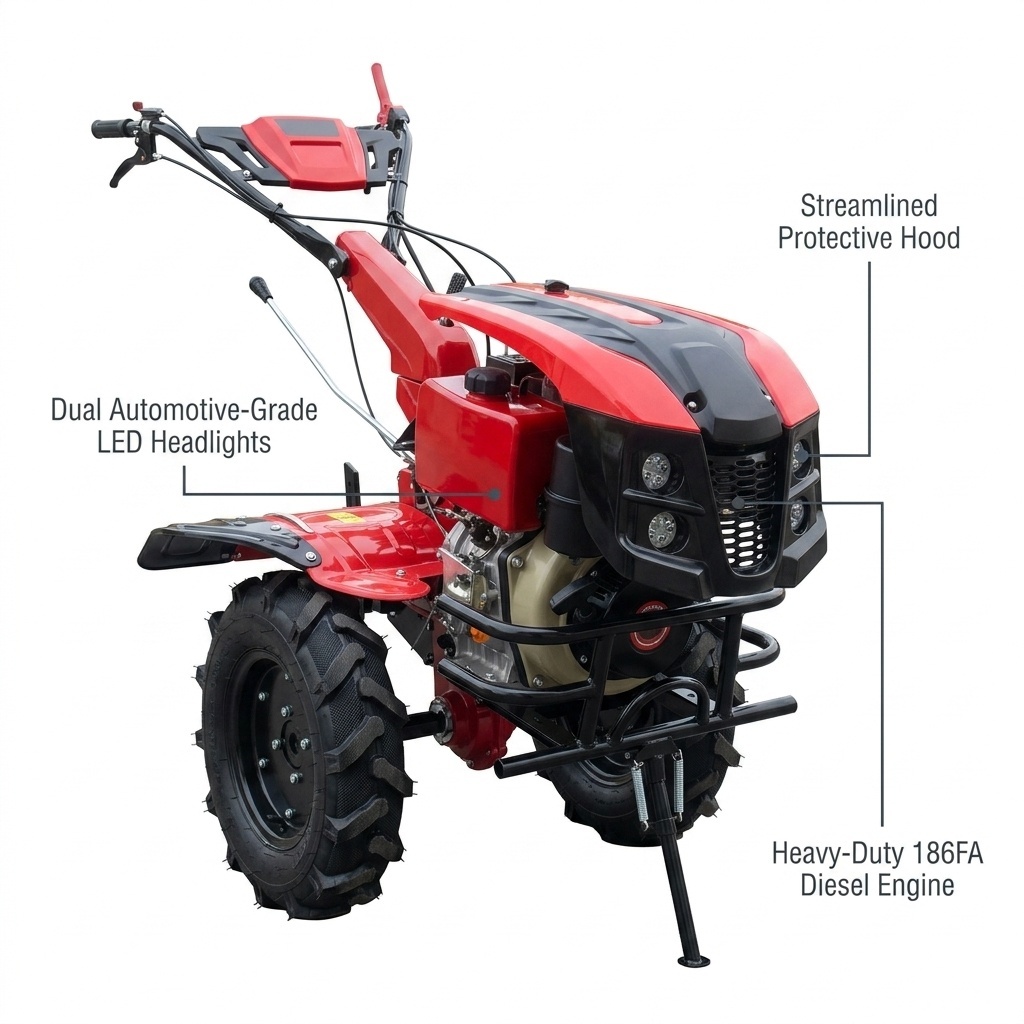

  • Industrial-Grade 186FA Engine: Genuine 10HP power for high torque at low speeds—tackle hard soil without stalling.

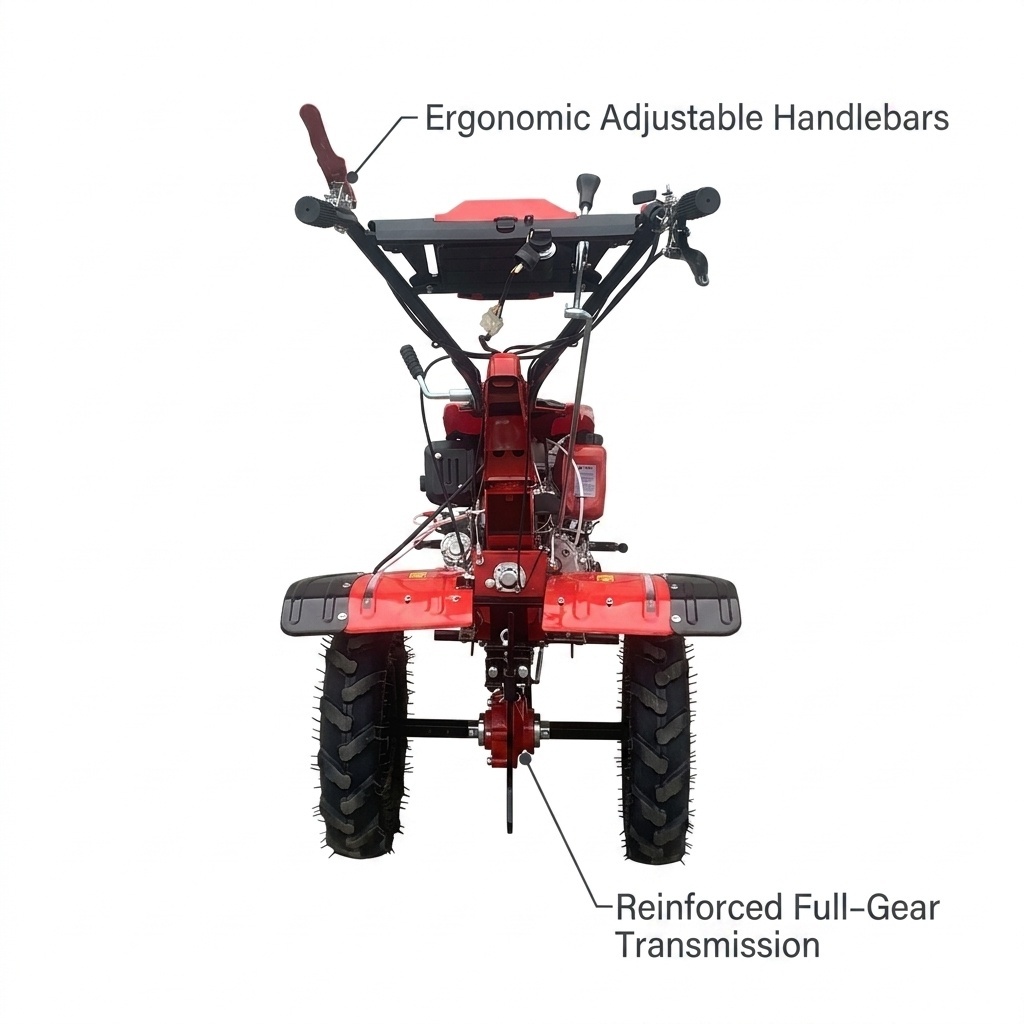

  • Reinforced Full-Gear Transmission: Heavy-duty gear drive (no belts) for 100% power transfer and 30% longer life.
  • 1350mm Ultra-Wide Tilling: Adjustable 1.35m width boosts efficiency by 40% over standard tillers.

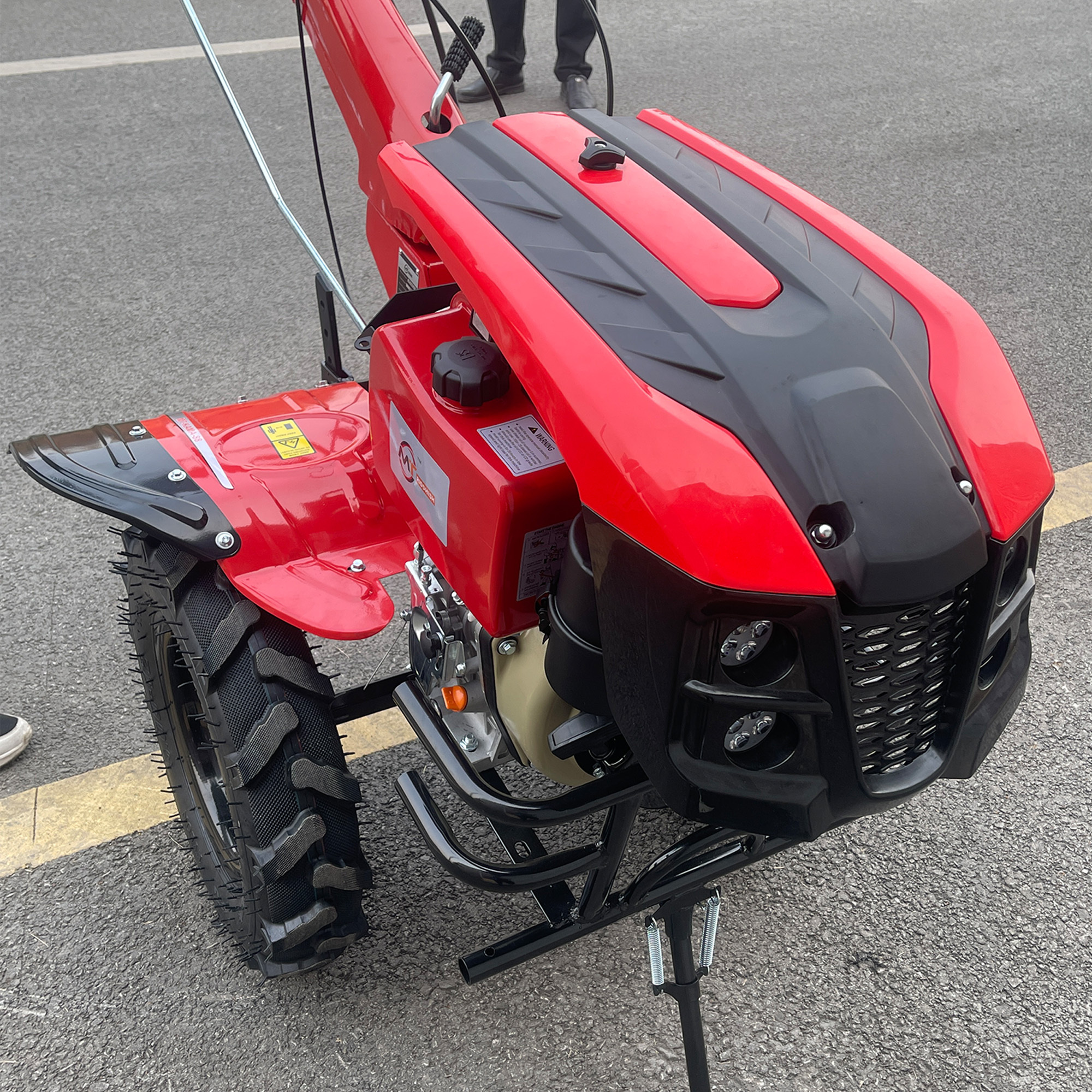

  • Night-Work Safety: Automotive-grade LED headlights and streamlined hood for protection and visibility.
  • Multi-Functional PTO: Rear PTO connects to ditchers, ridgers, or pumps—one machine, multiple farm tasks.
Operation Method

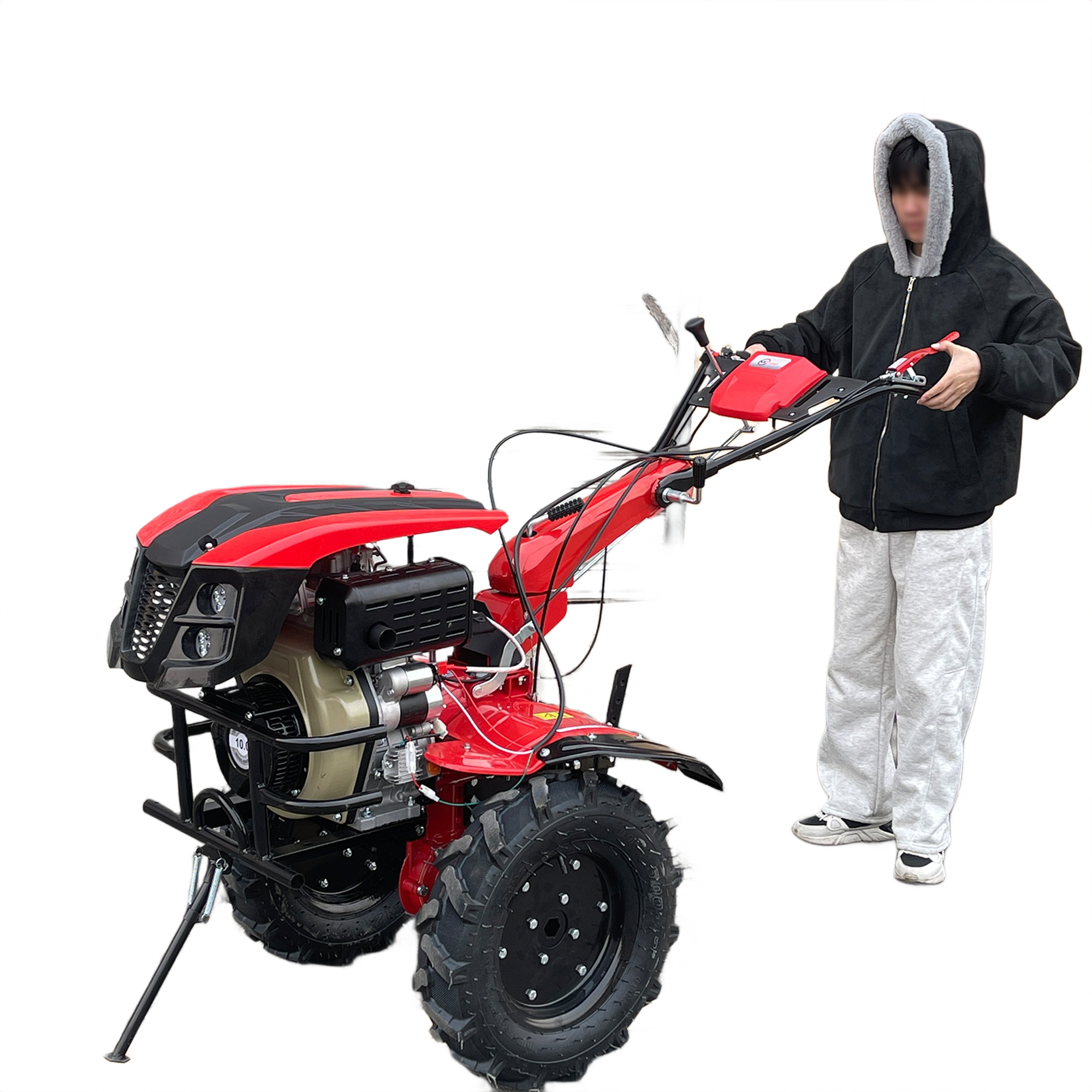

Handheld & Walk Behind
Transmission
Gear
Clutch
Friction Plate Type | Normally Closed Clutch
Gear Shifting
2 , 0 , 1 , -1
Dimensions
1950*1550*1240 mm
Hexagonal Main Shaft Diameter
32 mm
Blades
Dryland Blade 38pc (3+1+1)
Tilling Depth & Width
Depth 120 mm | Width 1400 mm
Tire
Pneumatic Rubber Tires: 500-12
Engine Model

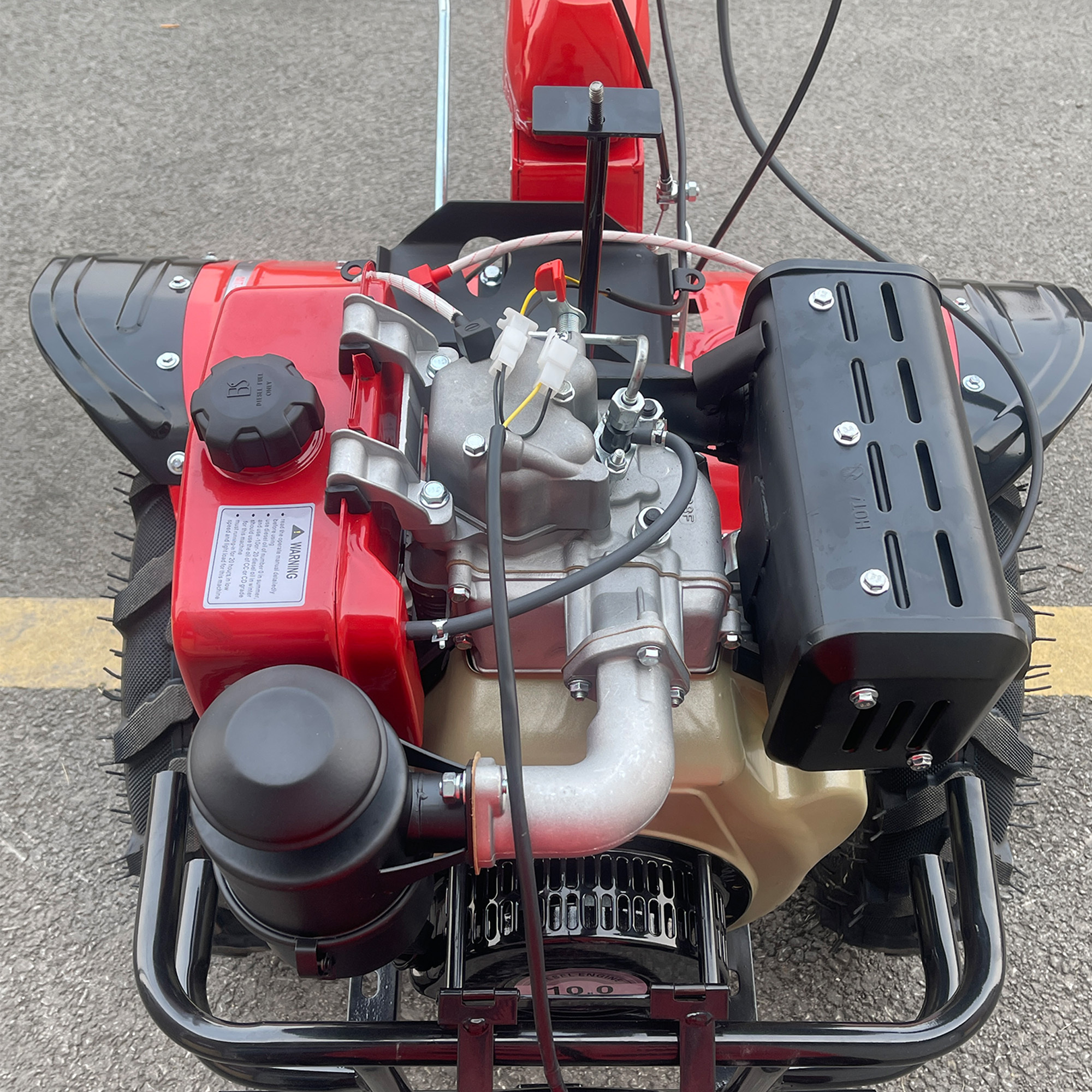

186F, Single-cylinder, Four-stroke, Forced Air Cooling
Bore × Stroke
78*62 mm
Fuel Tank Capacity
5.5 L
Fuel Consumption
≤35 kg/hm²
Starting Method
Electric Start
Package Info
Wooden Crate, 980*570*800 mm, 155 Kg
Starting Method:
Electric Start
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail
  • SBL Mach 10HP Tiller Technical Detail

Description

Product name
TSBL1350Dp
Fuel type
Diesel
Transmission gear drive
Engine Model 186FA
Displacement 418cc
Gear Shifting 2, 0 ,1, -1
Starting Method
Manual Start & Electric Start Optional
Tire Size 500-12
Fuel Tank Capacity 5.5L
Net Machine Weight
150kg
Gross Weight 155kg
Package Size 980*570*800mm
Notes
During shipment, the tiller machine components are shipped separately from parts such as fenders and handlebars, without pre-assembly. Logistics shipping is typically done using wooden crates for container loading, with customizable carton packaging available upon request.





Q: Are you a manufacturing company or a trading company?
A: We are an integrated trade and manufacturing company. All of our products are manufactured by our own company, and we have been operating in the Chinese market for over 10 years.
Q: Do you support sending samples?
A: Yes, we can produce and send samples according to your requirements. However, please note that you will be responsible for the costs of sample production and logistics.
Q: Do you offer branding on your products?
A: Absolutely! If you don't have a developed brand strategy, we can offer paid services to support you, including marketing, product customization, packaging design, and sales strategy development.
Q: How can I ensure the quality of the products I order?
A: We provide free inspection photos or videos from production to shipment. Additionally, we offer a one-year warranty on core components to ensure the quality of our products.
