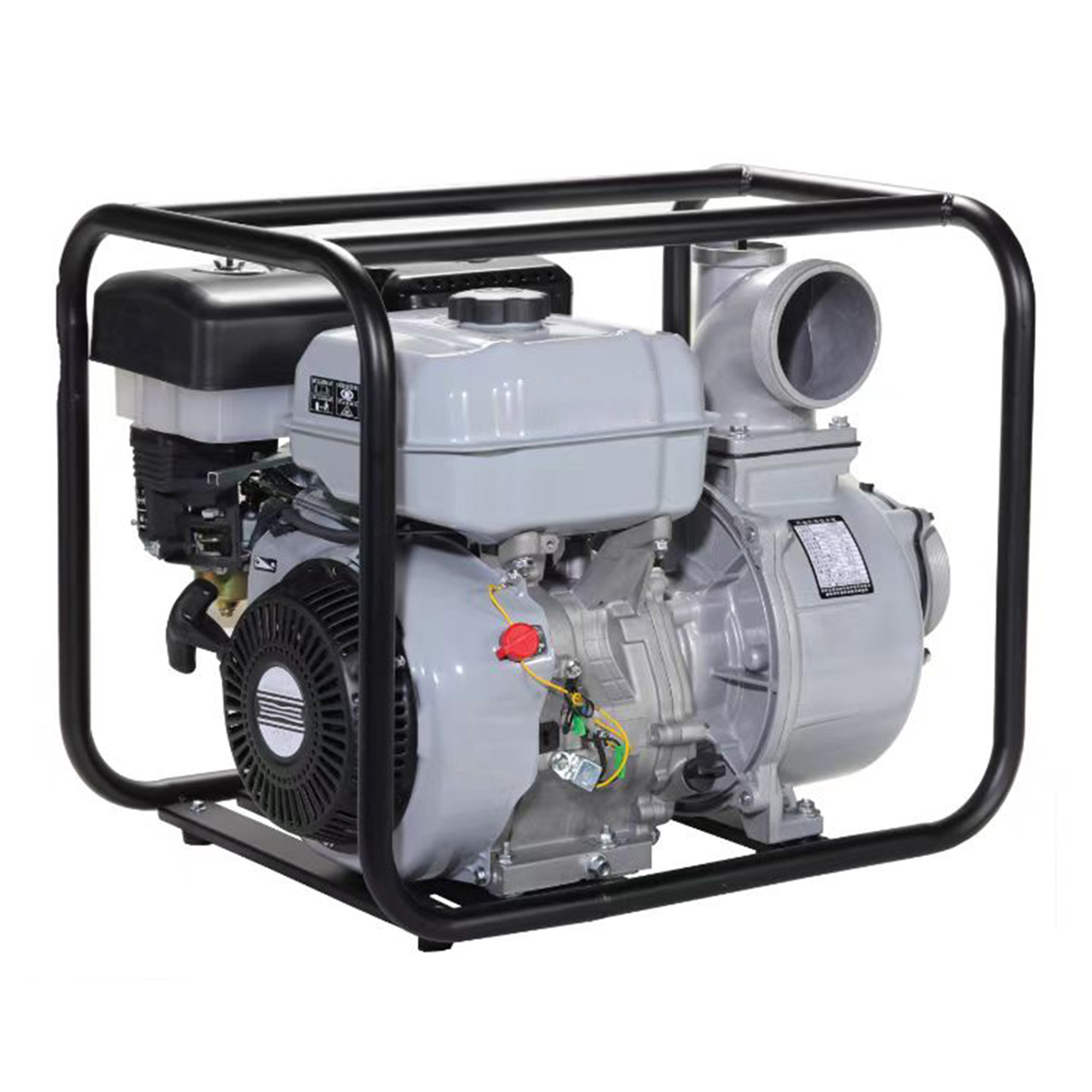

PSBLG190C is a high-performance gasoline-powered clear water pump designed for efficient irrigation, drainage, and large-volume water transfer applications. Equipped with a 190F engine delivering 15 HP, this pump features a single-cylinder, vertical, 4-stroke, air-cooled design, ensuring strong power output and reliable performance in demanding working conditions.
With a displacement of 420 ml and a bore and stroke of 90 × 66 mm, the engine operates at a standard speed of 3600 rpm, providing stable and efficient operation. The pump is equipped with a recoil manual start system, and optional electric start is available for greater convenience. Its 6.5 L fuel tank and 1.1 L engine oil capacity support practical use for longer working periods.
Designed with larger water transfer capacity, PSBL190G supports both 4-inch and 6-inch inlet and outlet configurations to meet different application needs. In the 4-inch (100 mm) configuration, the pump delivers a flow rate of up to 85 m³/h, with a maximum head of 20 m and a suction lift of 7 m. In the 6-inch (150 mm) configuration, it delivers a flow rate of up to 120 m³/h, with a maximum head of 18 m and a suction lift of 7 m, making it suitable for agricultural irrigation, flood drainage, and other high-volume pumping tasks.
For the 4-inch model, the overall dimensions are 610 × 470 × 515 mm, with a gross weight of 45 kg. For the 6-inch model, the dimensions are 750 × 570 × 720 mm, with a gross weight of 61 kg. With its durable structure and practical design, PSBL190G is a dependable solution for heavy-duty water pumping work.
