Commercial Riding 4WD Tiller: The Solution to Farmer Fatigue

  • Revolutionary Operator Comfort: Integrated seating and intuitive controls allow for 8-hour shifts with zero physical strain.
  • Unbeatable 4WD Traction: Dominates wet mud, slippery paddy fields, and steep terraced hills where 2WD machines fail.
  • Dual-Gear Shifter Precision: Features a 3+1+1 gearbox for perfect speed matching across various crop stages.
  • High-Payload Utility: Strong enough to pull 1000kg farm trailers and drive large PTO water pumps simultaneously.
  • Professional Export Crating: Ships in reinforced steel frames to ensure 100% safe arrival at global ports.
Operation Method
Ride & 4 Wheel Drive
Transmission
Gear
Clutch
Friction Plate Type | Normally Open Clutch

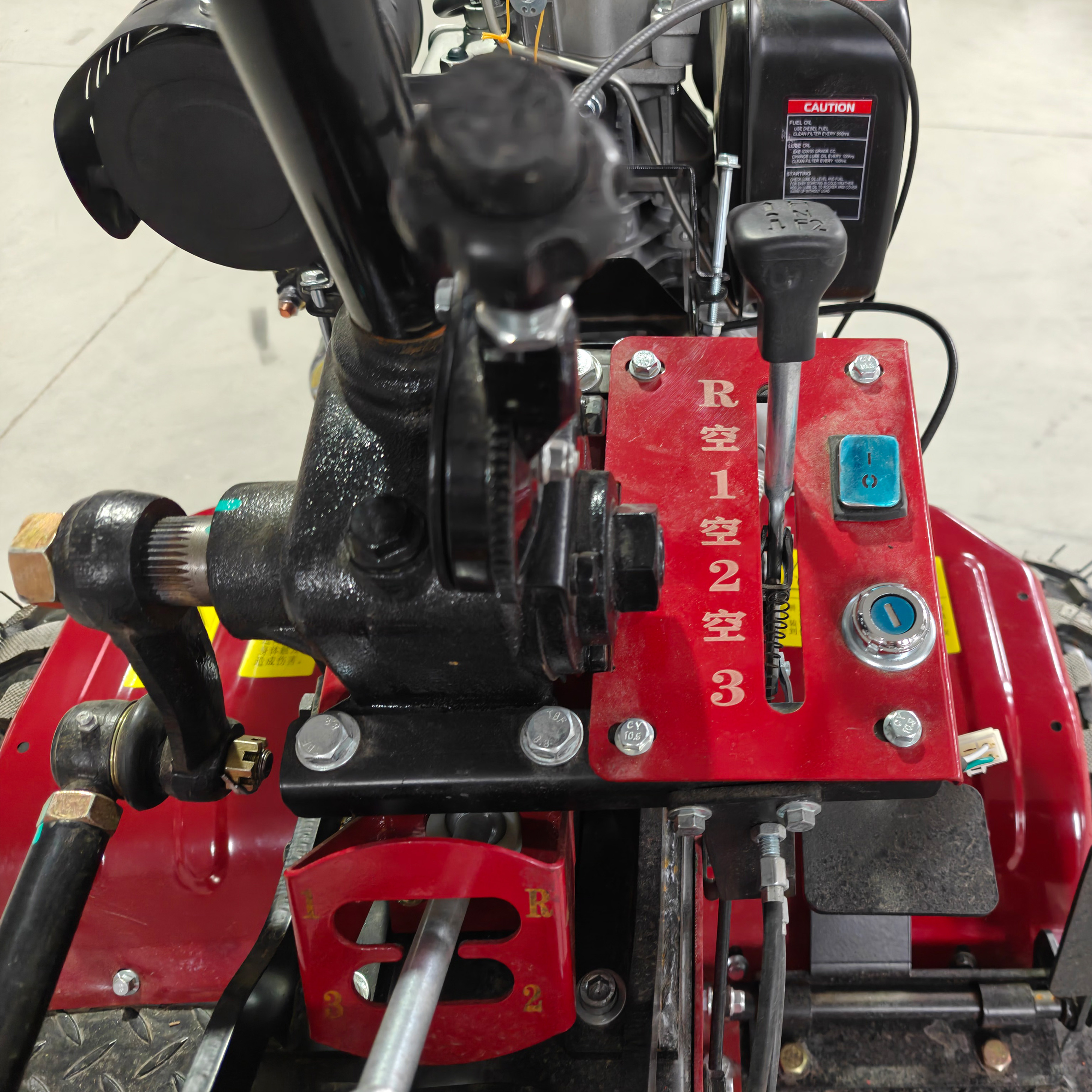

Gear Shifting
2 , 0 , 1 , -1
Dimensions
1900*1350*1240 mm
Hexagonal Main Shaft Diameter
32 mm
Blades
Dryland Blade 38pc (4*5 *2)
Tilling Depth & Width
Depth 150 mm | Width 1350 mm
Tire
Solid Rubber Tires: 500-10
Engine Model
192F, Single-cylinder, Four-stroke, Forced Air Cooling
Bore × Stroke
92*75 mm
Fuel Tank Capacity
5.5 L
Fuel Consumption
≤35 kg/hm²
Starting Method
Electric Start
Package Info
Iron Frame with Plastic Wrap, 1890*1130*1530 mm, 350Kg
Starting Method:
Electric Start
  • Commercial Riding 4WD Tiller: The Solution to Farmer Fatigue
  • Commercial Riding 4WD Tiller: The Solution to Farmer Fatigue
  • Commercial Riding 4WD Tiller: The Solution to Farmer Fatigue
  • Commercial Riding 4WD Tiller: The Solution to Farmer Fatigue
  • Commercial Riding 4WD Tiller: The Solution to Farmer Fatigue
  • Commercial Riding 4WD Tiller: The Solution to Farmer Fatigue
  • Commercial Riding 4WD Tiller: The Solution to Farmer Fatigue

Description

Product name
TSBL1350D 4WD
Fuel type
Diesel
Transmission Gear Drive
Engine Model 192FA
Displacement 499 cc
Gear Shifting 2, 0 ,1, -1
Starting Method
Manual Start & Electric Start Optional
Tire Size 500-10
Fuel Tank Capacity 5.5L
Net Machine Weight
270kg
Gross Weight 270kg
Package Size 1890*1130*1530 mm
Notes
During shipment, the tiller machine components are shipped separately from parts such as fenders and handlebars, without pre-assembly.
Logistics shipping is typically done using Iron frame for container loading, with customizable packaging available upon request.





Q: Are you a manufacturing company or a trading company?
A: We are an integrated trade and manufacturing company. All of our products are manufactured by our own company, and we have been operating in the Chinese market for over 10 years.
Q: Do you support sending samples?
A: Yes, we can produce and send samples according to your requirements. However, please note that you will be responsible for the costs of sample production and logistics.
Q: Do you offer branding on your products?
A: Absolutely! If you don't have a developed brand strategy, we can offer paid services to support you, including marketing, product customization, packaging design, and sales strategy development.
Q: How can I ensure the quality of the products I order?
A: We provide free inspection photos or videos from production to shipment. Additionally, we offer a one-year warranty on core components to ensure the quality of our products.
